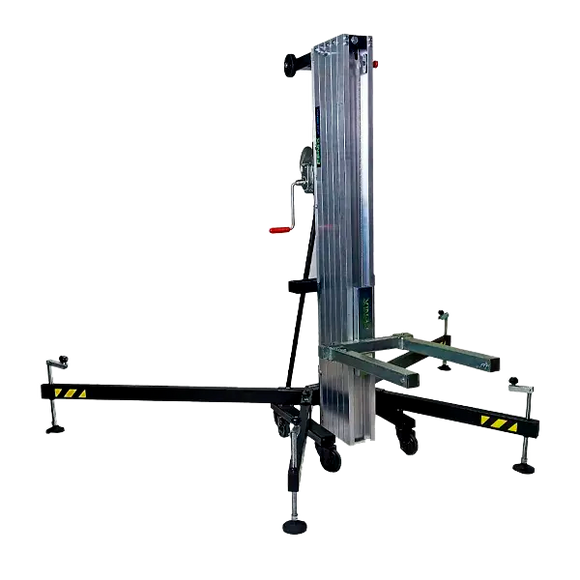

The AT-06 Compact lifting tower, manufactured by FENIX Stage, is a versatile and compact option for efficiently lifting loads from the ground. Specially designed for event and show applications, this front loading tower offers exceptional performance. With a maximum height of 6.50m and a load capacity of up to 250kg, the AT-06 Compact is ideal for lifting line array systems, trusses and LED screens. Its compact, foldable design allows for easy transport and storage, saving space and making it easy to use in a variety of locations. Made of high quality aluminium, the AT-06 Compact is lightweight yet sturdy, making it ideal for touring and mobile events. Its 1.66 x 1.72m working area provides enough space to work comfortably. Equipped with an AL-KO Type 900 Compact winch, this lifting tower offers a reliable and safe lifting system. The galvanised steel cable meets quality and strength standards, ensuring trouble-free operation. The AT-06 Compact has a safety system that includes an internal pendulum and an external trigger in sections, providing additional protection during use. In addition, its leg anchorage with safety latches ensures a stable and secure base. All in all, the AT-06 Compact lifting tower is a practical and efficient option for lifting loads at events and shows. Its compact design, load capacity and ease of use make it a reliable tool for professionals in the entertainment industry.

The AT-06 COMPACT is a front-loading tower lift designed to fit into tight spaces without compromising performance. With a maximum height of 6.50m and a folded height of 1.76m, this tower gives you the power you need in a compact format, perfect for transporting in medium-sized vehicles.

Details

Base Trigger: The base trigger allows you to anchor it to the base more agilely, using a push system that replaces the old and uncomfortable ring triggers.

Polyamide Plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.

Safety Triggers: The triggers prevent the load from collapsing. Additionally, they allow for selecting different heights and lifting all bars equally, distributing the load from the main bar to the last bar, which extends the tower’s lifespan.

Bubble Level: The location of the level at the base allows for stabilizing the tower more comfortably and accurately.

Reinforced Base: All our towers have a reinforced base capable of supporting heavy weights and high elevations.

Ring: Included in the AT and HERCULES series. It allows you to secure cables to any fixed surface or object to provide greater safety for the tower.

Transport Handle: Included in the AT and HERCULES series. It allows you to transport the tower both vertically and horizontally. Additionally, it serves as protection for the cable and the winch.

Roller: Included in the AT and HERCULES series. It allows you to transport the tower horizontally.

Winch: Our winches are manufactured by high-quality and reputable companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable pulling.

Fixation: Prevents the cart from moving during transport.

Safety Pendulum: Front-loading models include this internal safety system that automatically locks the tower when it detects a sudden drop in the profiles, in case of cable breakage or cut.

Trigger: Allows you to select different heights and distribute the load equally among all bars.

Technical specifications

-Maximum height: 6,50m
-Maximum load: 250kg
-Height folded: 1,76m
-Weight: 111kg
-Winch: AL-KO Type 900 Compact 900kg
-Workspace: 1,66 x 1,72cm
-Minimum charge: 25kg
-Material: Aluminium AL Si 6082 / T6
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: Inner pendulum and external trigger in sections.
-Bubble level: to vertically adjust the tower.
-Leg attachment: Safety pins.
